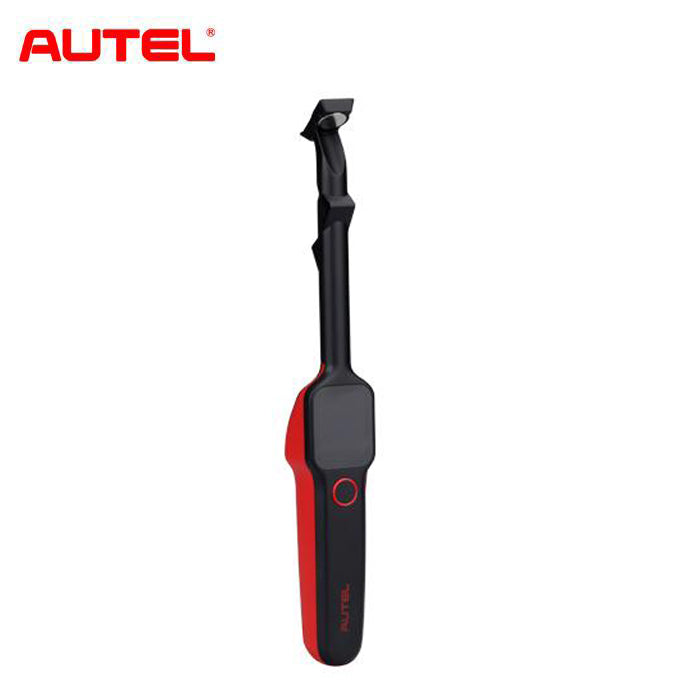

Autel MaxiTPMS TBE200E EU
Rappel : la nouvelle version TBE200E EU ne dispose plus de l'application Brake-Disc.
The MaxiTPMS TBE200E EU is a laser-enabled tire tread depth examiner that provides users with quick and accurate wear measurements. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. The TBE200dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
Why Choose Autel MaxiTPMS TBE200?
-
Easier Measurement - Tire tread depth check in one tool, no need to remove the wheel during measurement
-
Newest Tire Brake Examiner - Autel TBE200 is the upgraded version of TBE100 added scan DOT, tire expiration notice, tire recall lookup, take photos of tire wear and damage etc, supports almost all tire types, comprehensive test report (Need ITS600).
-
Tire Tread Depth Tester - Autel MaxiTPMS TBE200 is not only a laser inspector with a measuring accuracy of 0.1 mm, but also measurements displayed graphically. It is convenient for technics and repair shops to measure tread depth without removing wheel
-
Enhancing the TBE200 with the ITS600 - When used with the 👉ITS600👈, The TBE200 will take advantage of the ITS600’s larger screen to collect tire tread information, combine it with TPMS information from the ITS600 to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
-
Real-Time Tire Health Analysis - Autel TBE200 tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch-high resolution Super Retina touchscreen AMOLED
-
1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
Autel MaxiTPMS TBE200 TPMS Functions
- Real-time measurement data on touchscreen
- Measurement data curve display
- Uneven wear analysis
- Test detail for single tire tread
- Detailed replacement & maintenance suggestions (tire/ tire rotation/alignment servicing)
- Scan DOT, tire expiration notice, tire recall lookup
- Take photos of tire wear & damage
Autel's Perfect TPMS Pair - The TBE200 with ITS600
The TBE200 powerful feature set can be used as a standalone device.
But the benefits increase when used in conjunction with the ITS600 TPMSand service tool taking advantage of the larger display, We can pair the tools wirelessly and integrate the information collected from the tires with detailed TPMS information with the combined abilities of these two tools we can provide the most comprehensive TPMS entire health reports known to the industry The TBE200 is so advanced that it can provide uneven wear analysis and detailed replacement and maintenance suggestions
Autel MaxiTPMS TBE200 Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth Repair tips (Requires ITS600)
Autel MaxiTPMS TBE200 Vehicle Coverage
Autel MaxiTPMS TBE200 Specifications:
Recommended Use |
Indoor |
Processor: |
4x ARM Cortex-A35 (1.5 GHz) |
Memory: |
1GB RAM LPDDR3 4GB ROM |
Display: |
1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
Connectivity: |
Wi-Fi/USB 2.0/Type C |
Sensors; |
CMOS WXGA, 1 megapixel 8 megapixel, 30fps |
Audio Input/Output: |
Output: Beep |
Power and Battery: |
3.7 V/3000 mAh 18650 lithium-ion battery/Charges via 5 V AC/DC power supply |
Tested Battery Life: |
Around 8 hours of continuous use |
Battery Charging Input : |
5 V/1.5 A |
Power Consumption: |
300 mA (AMOLED on with default brightness) @3.7 V |
Operating Temp.: |
-10to60°C(14to140°F) |
Storage Temp.: |
-20to70°C(-4to158°F) |
Operating Humidity: |
5%-95%non-condensing |
Dimensions (W x H x D): |
283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
Net Weight |
188 g (0.41 lb.) |
Autel MaxiTPMS TBE200 Package list:
- 1x MaxiTPMS TBE200 Main Unit
- 1x Calibration Table
- 1x Power Adapter
- 1x Type C USB Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying Case
Some Information You Wish You Know Before Buying
Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?
A: We have UK, France, Germany, Spain and other warehouses in Europe. If you are located in the UK, the products will be dispatched from the UK warehouse, the logistics time is 3-5 days, and the delivery company is Royal Mail/Yodel. Free shipping, you don't need to pay other fees.
Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?
A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.
Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?
A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
