Autel MaxiSys MS906 Pro| Codage avancé de l'ECU | Contrôle bidirectionnel| 36+ Services | Tous les systèmes |Seulement anglais

items availableEn stock |
jusqu'à -42% - 42%
Prix ​​d'origine €1.799,00
À partir de Prix ​​d'origine €1.799,00
Prix ​​d'origine €1.799,00
Prix ​​actuel €1.039,00
À partir de €1.039,00
Prix ​​actuel €1.039,00
Set: Maxisys MS906 Pro

Livré entre Sun, Oct 13 - Tue, Oct 15 Expédié depuis Allemagne

Service

Livraison gratuite & Pas de taxes

Retour facile sous 30 jours

Garantie officielle sans tracas

Équipe de service professionnel

Paiement facile
Livraison fiable
Livraison fiable
  • Description
  • Vidéo
  • Comparaison
  • Télécharger
  • Expédition
  • Certificat
    • Description

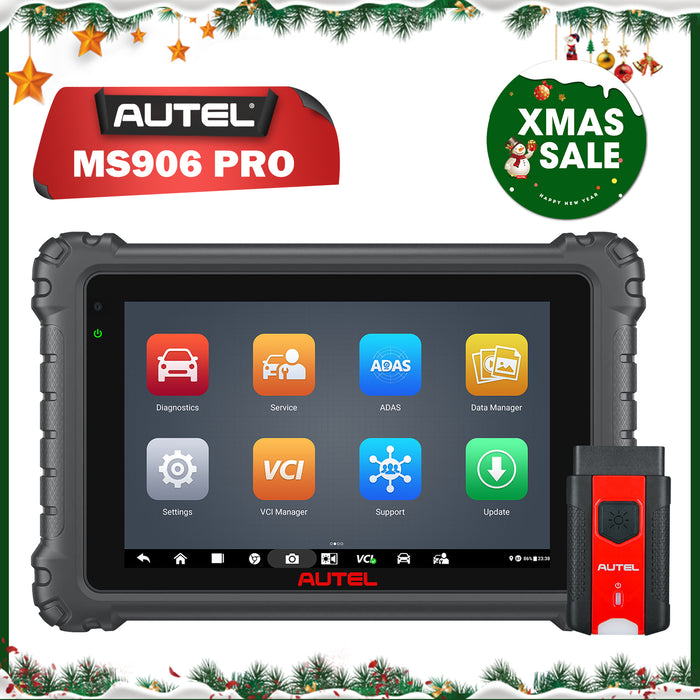

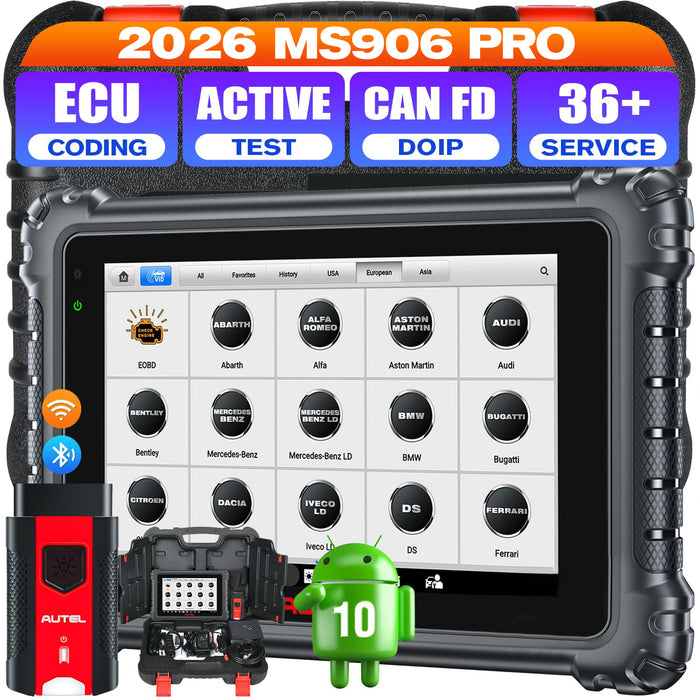

  • Autel MaxiSys MS906 Pro

    As Autel newest diagnostic scan tool and upgraded version of MS906BT, MS906 Pro has been upgraded from both hardware and software. Autel MS906 Pro is equipped with Android 10.0 OS/Exynos octa-core processor with 4G RAM & 128GB for super smooth operation/8-inch 1920*1200 touchscreen/5MP & 16MP double cameras/11600mAh battery.

    Why Choose Autel MaxiSys MS906 Pro?

    • No Blocking - You can use MS906 Pro all over the world
    • Upgrade Version for MS906BT - Autel MS906 Pro Supports long-distance wireless communication, more convenient. Rechargeable 10000mah 3.7V high capacity battery, more durable; Supports for Remote Expert service,one click for help.
    • OE-Level Full Systems Diagnosis - MaxiSys MS906 Pro can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB among other on-board systems. You can read, clear their codes thus turning off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
    • 36+ Service Functions - MS906 Pro has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
    • Battery Tester - Autel automotive tool MS906 Pro works with Battery Tester to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system. (Autel BT506)
    • 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
    • Professional Costumer Services - Respond and solve your problems within8 hours👉Contact us👈
    • Language: Only support English, if you want almost same function,but multi-language ,you can choose MK906 Pro,Click Here

    Advanced ECU Coding

    Autel MS906 Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

    36+ Reset Services

    Autel MS906S bluetooth scanner is loaded with 36+ reset functions for in-depth and comprehensive repairing & maintenance.

    1. Oil Reset - Reset the oil change calculator in the engine and automatic transmission
    2. EPB - Replacement of brake pads on vehicles with an electric parking brake
    3. SAS - Adaptation of the sensor to the angular position of the steering wheel
    4. DPF - Regeneration of diesel particulate filter
    5. Brake Bleed - ABS Brake Bleeding
    6. ​​BMS - Battery registration and reset
    7. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.

    Note: The reset service does not work normally on all vehicles. In order to ensure that the Autel diagnostic tool can solve the problems you encounter, please provide the VIN of your vehicle and your needs, and we will reply to you an email within one working day. 👉Contact us👈

    Bi-Directional Control (Active Test)

    MaxiSys MS906 Pro automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

    Full Systems Diagnosis

    MS906 Pro can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data, Compatible with U.S., European vehicles, from 1996 to newer 2024.

    Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.

    Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.

    Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

    Autel Maxisys MS906 Pro Add-on Functions

    Maxisys MS906 Pro is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

    1. MS906 Pro connects to a MV108S  inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
    2. MaxiSys MS906 Pro works with Autel MP408 oscilloscopeproviding you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
    3. Autel automotive tool MS906 Pro works with Battery Tester(BT506) to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.



    Autel MaxiSys MS906 Pro Specification:

    Operating System: Android 10.0
    Processor: Samsung Exynos 8 Core(4*M2 2.3G + 4*A53 1.7G)
    Memory: 4/128GB
    Display: 8.0" LED capacitive touch screen with 1920x1200 resolution
    Connectivity: • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
    Camera (rear):

    Front: 5 Megapixel

    Rear: 16 Megapixel

    Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 11 600 mAh 3.7 V lithium-polymer battery
    Charging via 12 V AC/DC power supply
    Input Voltage: 12 V (9-35 V)
    Power Consumption: 5 W
    Operating Temp.: -10 to 55°C (14 to 131°F)
    Storage Temp.: -20 to 70°C (-4 to 158°F)
    Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    Weight NW: 1.05 kg (2.3lb.)

    Autel MaxiSys MS906 Pro Package List

    • 1x Maxisys MS906 Pro main unit
    • 1x MaxiVCI V200
    • 1x AC/DC Adapter (12V)
    • 1x Type C USB Cable
    • 1x Cigarette Lighter Adapter
    • 2x Spare Fuse(6*30mm)
    • 1x USB to Ethernet Adapter
    • 1x Soft Cloth
    • 1x User Manual
    • 1x Packing List
    • 1x Carrying Case
    • 1x Quick Reference Guide

    FAQ

    Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?

    A: We have France, Germany, Spain and other warehouses in Europe. If you are located in the EU,the logistics time is 3-5 days,  Free shipping, you don't need to pay other fees.

    Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?

    A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.

    Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?

    A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
    We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
